Technical Characteristics

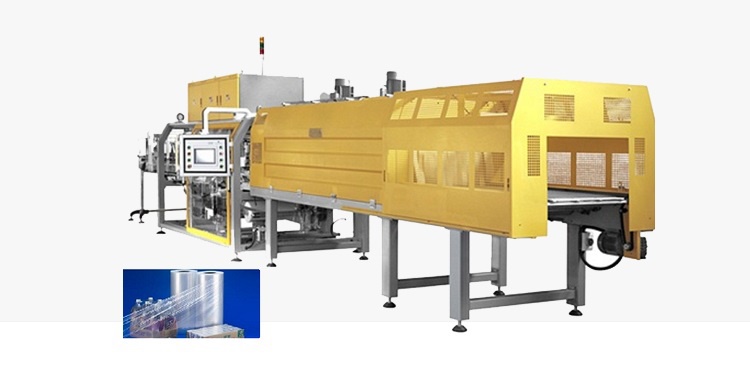

DPT-5545TBC is an automatic, automatic and unmanned economic side packaging machine developed by our company. It is widely used in mass production and packaging of the flow operation, automatic feeding, transportation, bag entry, sealing and contraction. High efficiency and suitable for different height and width of the products.

1. the sealing section of the transverse blade is driven by the vertical type, the longitudinal knife adopts the international advanced thermostat side sealing knife, the sealing line is straight and firm, and the sealing line can be ensured in the middle position of the product to achieve the perfect sealing effect.

2. The constant temperature heating and sealing system can be used to seal and shrink the shrinkable films of various industrial standards such as POF. Products with different package sizes can be completed only by hand wheel adjustment, increasing reliability and making it
easier to operate.

3, longitudinal sealing knife continuous cutting action, product length is not limited.

4, the machine adopts the most advanced PLC programmable controller, with safety protection and alarm device, and the sealing and cutting system can make the sealing action continuously and smoothly, without replacement, the maintenance operation is very simple.

5. Feeding length control is combined with electric eye detection and timer to control the length of the film accurately, so that the shrinkage effect can be controlled more easily.

6. Add two sets of electric eye in horizontal and vertical electric eye to facilitate switching selection. For thin or small package, seal packaging can be done easily.

7. Automatic coiling waste is controlled by a single motor. It will not be too loose or too tight.

8, according to customer needs, add automatic blowing function

9. According to the needs, the front power feeding line and the rear end.

Main technical parameters:

Main technical parameters　　　　　　DPT-5545TBC Sealing and cutting form 　Cuff power pack 　380V/50-60Hz/3phase optimal packing 　420(L)*300(W)*320(H)mm top speed 　20Packet / min. The use of thin film 　FE Heat shrinkable film The largest film 　630mm(Width)*280mm(external diameter） Total power 　20.5kW Furnace body size 　1800mm(L), 600(W)*400(H)mm transporting velocity 　frequency control，15meter per minute Conveying belt 　Chain conveyor, roller sets of silicone tube Platform height 　800-850mm Gas pressure 　≤0.5MPa(5 bar) P L C 　SIEMENS S7 Sealing and cutting system 　Constant temperature heating system, easy replacement of the cutter, cut no smoking no odor The operation interface 　Eview Text screen The main material 　carbon steel The weight of the whole machine 　1050kg
